| Brand Name : | DK |
| Model Number : | DK-YSM 15000AR |
| Certification : | CE |
| Price : | Can be negotiation |
| Payment Terms : | L/C, D/A, D/P, T/T |
Product Introductions

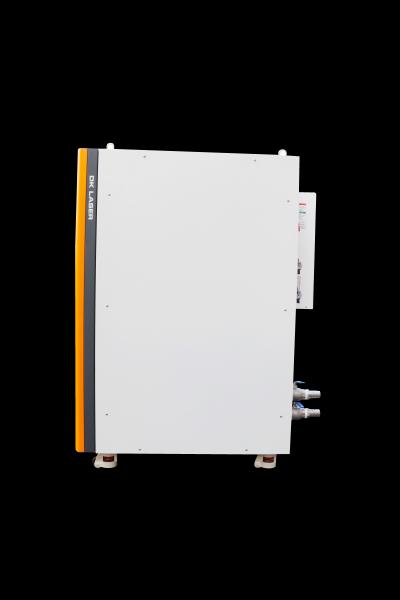

Multi-mode CW fiber laser series realize as high as 15 kW output by self-developed key devices (such as fiber laser module, signal combiner and etc.) and integrating technology. The high power output of this type of fiber laser has excellent reliability and environmental adaptability, and is especially suitable for high-end industrial application.
Product Features
♦Ultra high stability
♦High WPE
♦Super processing capacity
♦Excellent performance
Product specification
| Optical Parameters | DK-YMM 10000 | DK-YMM 120000 | DK-YMM 150000 | |
| Operation Mode | CW/Modulation | CW/Modulation | CW/Modulation | |
| Polarization State | Random | Random | Random | |
| Beam Quality | M2 | <10@100µm | <10@100µm | <12@100µm |
| BPP(mm·mrad) | ≤3.4@100µm | ≤3.4@100µm | ≤4@100µm | |
| Output Power | 10000W | 12000W | 15000W | |
| Output Fiber Diameter | 100µm | 100µm,200µm | 100µm,200µm | |
| Max. Modulation Frequency | 5kHz | 5kHz | 5kHz | |
| Rise/Fall Time | <20ms | <20ms | <20ms | |
| Power Range | 10%~100% | 10%~100% | 10%~100% | |
| Output Power Instability | ≤1.5% | ≤1.5% | ≤1.5% | |
| Center Wavelength | 1080±10nm | 1080±10nm | 1080±10nm | |
| 3dB Spectral Width | <8nm | <8nm | <8nm | |
| Indicated Light Wavelength | 635nm | 635nm | 635nm | |
| Indicated Light Power | >0.3mW | >0.3mW | >0.3mW | |
| Electronic Control Parameters | DK-YMM 10000 | DK-YMM 120000 | DK-YMM 150000 | |
| Operating Voltage | 380V | 380V | 380V | |
| Operating Frequency | 50Hz | 50Hz | 50Hz | |
| Laser Power Consumption | <30kW | <36kW | <45kW | |
| Other Parameters | DK-YMM 10000 | DK-YMM 120000 | DK-YMM 150000 | |
| Output Fiber Length | 20m(Customizable) | 20m(Customizable) | 20m(Customizable) | |
| Cooling | Water Cooling | Water Cooling | Water Cooling | |
| Dimensions | 1220mm×780mm×1580mm | 1220mm×780mm×1580mm | 1660mm×1000mm×1471mm | |
| Weight | 480kg | 530kg | 650kg | |
| Operating Temperature | 10℃~40℃ | 10℃~40℃ | 10℃~40℃ | |
| Storage Temperature | -15℃~60℃ | -15℃~60℃ | -15℃~60℃ | |
| Relative Humidity | 20%-80% | 20%-80% | 20%-80% | |
Product Samples
16MM/12MM/8MM smooth edge cutting of carbon steel
10MM/8MM/2MM cutting of brass
10MM/8MM/2MM cutting of brass
16MM/12MM/8MM/4MM cutting of carbon steel
|
|
