Product Introduction

YAG laser mold welding machine is specially designed for the mold industry special laser welding equipment, suitable for small and medium-sized mold and mechanical parts repair.

YAG laser repair has the following characteristics

♦The fine structure of the cladding layer is compact and the chemical structure is uniform.

♦It is easier to achieve precision repair of the mold, the heat affected zone is smaller after repair, and it can form a good metallurgical combination with the substrate. High bonding strength.

♦Wide choice of cladding materials, some nickel-based cobalt-based and iron-based alloys can be used as cladding materials.

♦The laser spot can enter particularly small areas or areas that are difficult to access by other technical means, and the material Less consumption and excellent cost performance.

Product features

♦Small beam diameter and small heat affected zone will not cause deformation of precision molds

♦Welding small and fine geometric area, suitable for all sizes of tooling

♦The workpiece does not change color after welding, there will be no pores and trachoma, and it can be directly ground, polished and EDM

♦Without the influence of substrate structure deformation, the workpiece can reach 50-60 Rockwell hardness after welding

♦The laser head can move forward and backward, and can be used for electric lifting

♦The table can be moved in X, Y and Z directions

Product Configuration

♦CCD for reviewing the welding path

♦YAG laser welding head

♦X,Y axis moving platform

♦Z axis lifter platform

♦Screen

♦YAG laser path and generator

♦Water chiller

Product specification

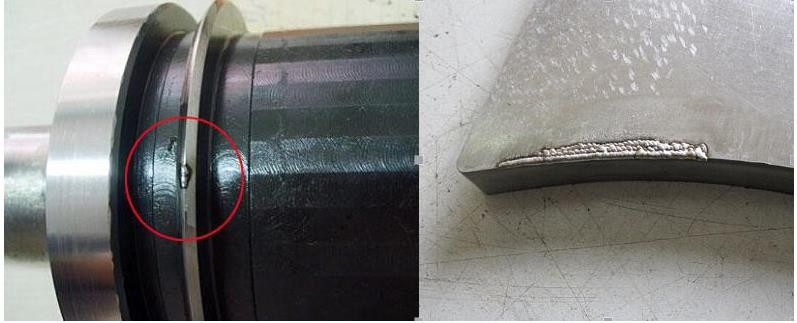

Application samples
