2000W Pulsed DK CW Fiber Laser Source With High Beam And Anti Reflection

Ask Lasest Price
Brand Name :	DK
Model Number :	DK-YSM 2000AR
Certification :	CE
Price :	US $7999.00 / Set
Payment Terms :	L/C, D/A, D/P, T/T

Add to Cart

Product Details
Company Profile

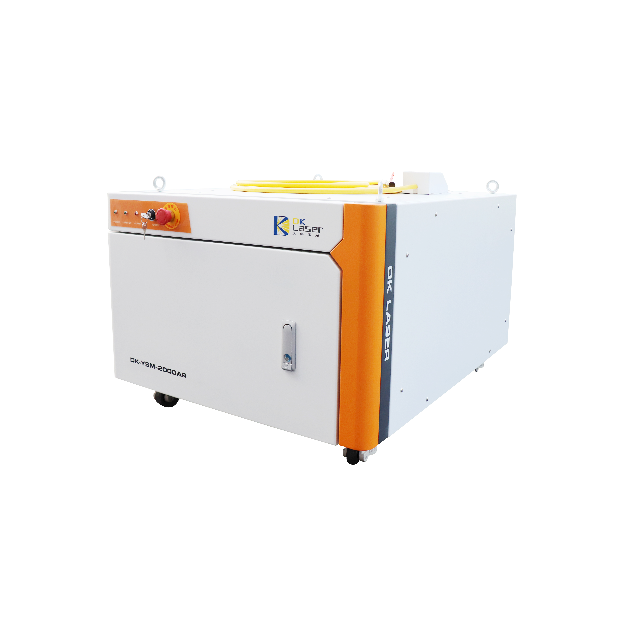

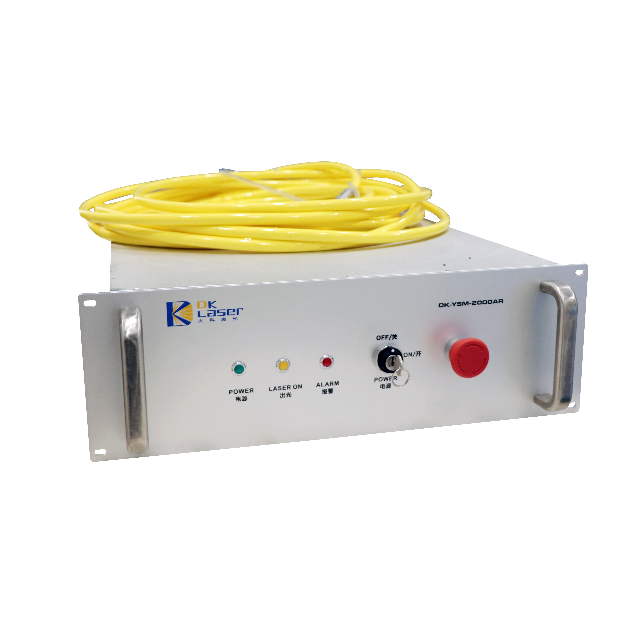

2000W Pulsed DK CW Fiber Laser Source With High Beam And Anti Reflection

Specification

Product Name			CW Fiber Laser Source
Application			cutting metal
Laser model			DK-YSM 2000AR
Laser brand			DK
Warranty			2 year
Operation Mode			CW/Modulation
Polarization State			Random
M2			<1.2@20μm
Beam Quality	BPP(mm·mrad)	≤0.4@20µm
Output Power			2000W
Output Fiber Diameter			25µm(20-100µm Customizable)
Max. Modulation Frequency			20kHz
Rise/Fall Time			<15µs
Power Range			10%~100%
Output Power Instability			≤1.5%
Center Wavelength			1080±10nm
3dB Spectral Width			<4nm
Indicated Light Wavelength			635nm
Indicated Light Power			>0.3mW
Operating Voltage			380V
Operating Frequency			50Hz
Laser Power Consumption			<6kW
Output Fiber Length			20m( Customizable)
Cooling			Water Cooling
Dimensions			760mm×455mm×170mm
Weight			53kg
Operating Temperature			10℃~40℃
Storage Temperature			-15℃~60℃
Relative Humidity			20%-80%

Product Description

2000W Pulsed DK CW Fiber Laser Source With High Beam And Anti Reflection

Company Profile

Wuhan CS Tec Co.,Ltd, a high-tech company that locates in the Wuhan Optical Valley, an enterprise which is professionally engaged in laser-related equipment and customized products. CS actively introduces varies of talents based on years of laser industry, from different product designs to operation experiences, and also be able to meet the special needs of customers to the greatest extent and cost control. The main products of Capstone relate with the fiber laser products that contains the cutting, welding and marking processes. Capstone also supplies different kinds of solutions based on laser cladding, laser additive manufacturing and other applications.

Why Choose Us?

1.Total solutions CS not only sell laser products , but also provide total solutions for whatever needs the end user composes; 2.Close to request CS can get all the market information all over the world . We know exactly what they need in each area and we are ready to cooperate with different customers 3.Connecting CS have global resources , which can provide high performance cost products all over the world

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

FAQ

Q: DO YOU PROVIDE SAMPLES ? IS IT FREE OR EXTRA ?
A: Yes, we could offer the sample for free but won’t pay the cost of freight.

Q: ARE YOU TRADING COMPANY OR MANUFACTURER ?
A: We are factory and trading company.

Q: Can I get some discount if I order more ?
A: Yes,The more you order,the more you save.

Q: How long is your delivery time?
A: When the order is confirmed, 3 working days for the small order,10~15 days for the bulk.

Q:How to choose suitable model?
A:Please provide a photo of the product you used before or tell us your needs, we will help.

Q:What's your MOQ?
A:Normally one piece. If more, we can talk about discount. You can mix it with other laser machine parts shipping together .
Q: What is your terms of payment ?
A: 100% in advance. Payment>=50000USD, 50% T/T in advance, the rest 50% before shippment.

Q:Why choose your company?
A:We are a professional Industrial Solutions company in China. We’re more familiar with customer’s marking or engraving
applications. So we’re in a position to recommend a more suitable model and provide free professional technology.
