Product introduction
DK- YSM SC is a series of non-water cooling lasers. According to the fact that the air cooling fiber laser in the market are mainly 200W~300W, DK makes upgrades of air cooling fiber lasers by applying advanced cooling and heat management technologies, making great progress in power level, optimizing structure and dimensions, and improving the beam quality, which is a big push to the technology of air-cooling fiber laser on the market. It can be widely used in various applications of portable and outdoor conditions. At present, the main product in the DK-YSM SC series is of 500W, and products for scientific research can be customized up to 1000W.
Product features
♦High beam quality
♦Low maintenance cost
♦High adaptation ability
♦Universal modules
♦Small volume
Product specification
| Optical Parameters | DK-YSM 100 | DK-YSM 200 | DK-YSM 300 | DK-YSM 500 | DK-YSM 1000 | |
| Operation Mode | CW/Modulation | CW/Modulation | CW/Modulation | CW/Modulation | CW/Modulation | |
| Polarization State | Random | Random | Random | Random | Random | |
| Beam Quality | M2 | <1.2 | <1.2 | <1.2 | <1.2 | <1.2 |
| BPP(mm·mrad) | ≤0.4 | ≤0.4 | ≤0.4 | ≤0.4 | ≤0.4 | |
| Output Power | 100W | 200W | 300W | 500W | 1000W | |
| Output Fiber Diameter | 14µm | 14µm | 14µm(Customizable) | 14µm(Customizable) | 14µm(Customizable) | |
| Max. Modulation Frequency | 20kHz | 20kHz | 20kHz | 20kHz | 20kHz | |
| Rise/Fall Time | <20µs | <20µs | <20µs | <20µs | <20µs | |
| Power Range | 10%~100% | 10%~100% | 10%~100% | 10%~100% | 10%~100% | |
| Output Power Instability | ≤2.5% | ≤2.5% | ≤2.5% | ≤2.5% | ≤2.5% | |
| Center Wavelength | 1080±10nm | 1080±10nm | 1080±10nm | 1080±10nm | 1080±10nm | |
| 3dB Spectral Width | <4nm | <4nm | <4nm | <4nm | <4nm | |
| Indicated Light Wavelength | 635nm | 635nm | 635nm | 635nm | 635nm | |
| Indicated Light Power | >0.3mW | >0.3mW | >0.3mW | >0.3mW | >0.3mW | |
| Electronic Control Parameters | DK-YSM 300 | DK-YSM 500 | DK-YSM 1000 | |||
| Operating Voltage | DC44V-47V | DC44V-47V | DC44V-47V | DC44V-47V | DC44V-47V | |
| Laser Power Consumption | <1.2kW | <1.2kW | <1.2kW | <2kW | <3kW | |
| Other Parameters | DK-YSM 300 | DK-YSM 500 | DK-YSM 1000 | |||
| Output Fiber Length | 5m | 5m | 10m(Customizable) | 10m(Customizable) | 15m(Customizable) | |
| Cooling | Air Cooling | Air Cooling | Waterless Cooling | Waterless Cooling | Waterless Cooling | |
| Dimensions | 324mm×240mm×185mm | 324mm×240mm×185mm | 324mm×240mm×185mm | 380mm×310mm×230mm | 650mm×450mm×222mm | |
| Weight | 10kg | 10kg | 10kg | 15kg | 40kg | |
| Operating Temperature | 5℃~35℃ | 5℃~35℃ | 5℃~35℃ | 5℃~35℃ | 5℃~35℃ | |
| Storage Temperature | -15℃~60℃ | -15℃~60℃ | -15℃~60℃ | -15℃~60℃ | -15℃~60℃ | |
| Relative Humidity | 20%-80% | 20%-80% | 20%-80% | 20%-80% | 20%-80% | |
Product Samples

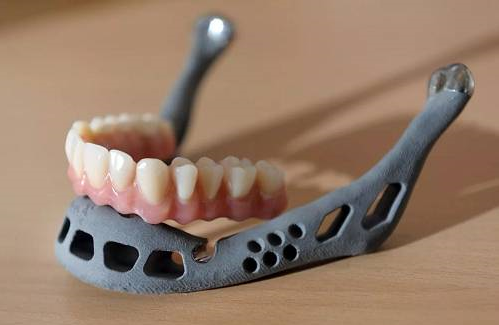

3D Printing
Cutting of sheet metal
|
|
