| Brand Name : | SkyEra |
| Model Number : | 915-975 |
| Certification : | CE |
| Price : | Can be negotiation |
| Payment Terms : | L/C, D/A, D/P, T/T |

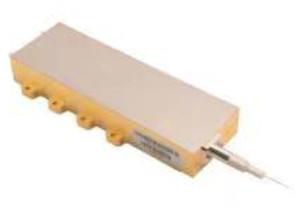

Product introduction
Delivers diode lasers employing professional coupling technology,that enjoy multiple advantages,e_g_,compact design.stable output power.high power.high efficiency and convenient packaging.There laser diode modules can provide solutions for fiber laser applications and direct suppliers.
Product application
Medical Printing pump source Material processing
Product specification
| Output Power(CW) | 90 | 130 | 100 | 170 | 200 | 280 | 200 | 300 | 700 | 1000 QCW+ | W |
| Centre Wavelength | 915-975 | 915-975 | 808 | 808 | 915 | 915 | 808 | 808 | 915 | 975 | nm |
| Spectral Width(FWHM) | 6.0 | 6.0 | 6.0 | 6.0 | 6.0 | 6.0 | 6.0 | 6.0 | 6.0 | 6.0 | nm |
| Operating Current | 14 | 14 | 12 | 12 | 14 | 22 | 12 | 12 | 22 | 35+ | A |
| Operating Voltage | 15.75 | 21.0 | 27.0 | 34.0 | 36.5 | 30.0 | 39.6 | 68.5 | 62.5 | 65 | V |
| Threshold Current | 0.5 | 0.5 | 1.0 | 1.0 | 0.7 | 1.0 | 1.5 | 1.5 | 1 | 1.5 | A |
| Convention Efficiency | 48 | 48 | 45 | 45 | 48 | 48 | 42 | 42 | 48 | 50 | % |
| Slop Efficiency | 8 | 10.5 | 13.5 | 16.5 | 16.5 | 16.5 | 18 | 33 | 33 | 33 | W/A |
| Core Diameter | 106.5 | 106.5 | 200 | 200 | 106.5 | 135 | 200 | 200 | 200 | 400 | μm |
| Numeric Aperture | 0.22 | 0.22 | 0.22 | 0.22 | 0.22 | 0.22 | 0.22 | 0.22 | 0.22 | 0.22 | |
| Fiber length | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | M |
| Proestion Tube | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | N/A | nm |
| Fiber Bend Radius | 37.5 | 37.5 | 55 | 55 | 37.5 | 55 | 55 | 55 | 55 | 100 | nm |
| Package | T90W | T120W | T120W | T120W | PX300 | PX300 | PX300 | TD38 | TD38 | TD38 | |
| Operating Temperature | 15-35 | ℃ | |||||||||
| Storage Temperature | -30_70 | ℃ | |||||||||
| Humidity | 5-85 | % | |||||||||
| Wavelength shift vs. Temperature | 0.3 | nm/℃ | |||||||||
| Wavelength shift vs.Current | 0.7 | nm/A | |||||||||
|
|
