| Brand Name : | CS |
| Model Number : | CS-CL-02 |
| Certification : | CE |
| Price : | Can be negotiation |
| Payment Terms : | L/C, D/A, D/P, T/T |
Product introduction
CS-CL-02 1500w is the new generation product with a high technology that applies for the purpose of the material surface cleaning application, which is easily to be set up, operated and automated. No need of chemistry, water or other working medias, the equipment can be also applied for removing the resin, grease, stains, dirt, rust material, coating, coating and paint. This device can be auto-focused on a specified area of the target surface of the material, which leads to a high performance of cleanliness result.
Product features
♦Ergonomic design, can greatly reduce operation labor intensity.
♦High cleaning efficiency and save time.
♦Operation system is stable and nearly requires no maintenance.
♦Mobile battery module optional.
Advantages
♦Compact and versatile, the cleaning machine are designed for the cost-effective treatment of small areas that require gentle high precision cleaning, de-coating and other surface treatments.
♦No other media is required for treating parts. These laser systems are easy to operate and virtually maintenance-free.
♦The basic system consists of the laser source, with controls and cooling, a fiber optic for beam delivery and a processing head. A simple main power supply is used for operation with a very low energy demand.
Product application
Widely used in mental surface rust removal ,paint removal, clad layer and coating removal, oil fouling ,blot and dirt of object cleaning and dust and attachments of statues surface,solder side and coating surface preprocess and residuum of rubber mold cleaning.
Product application
| Operating Evironment | |
| Voltage | 220V/380V,50/60Hz AC |
| Overall power consumption | 9KW |
| Operating Temperature | 5℃～40℃ |
| Operating Humidity | ≤80% |
| Optical parameters | |
| Average laser power | ≥1500W |
| Power instability | ＜2% |
| Power adjustment range (%) | 10-100(The gradient is adjustable) |
| Repetition frequency (kHz) | 20-200(The gradient is adjustable) |
| Fiber length | 5-10m |
| Cooling way | Water-cooling |
| Cleaning head parameters | |
| Scanning range (length * width) | 0mm~300mm,Continuously adjustable |
| Scanning frequency | Maximum of 300Hz |
| Focal length of field lens (mm) | 500mm |
| Focal depth | Maximum of 10mm |

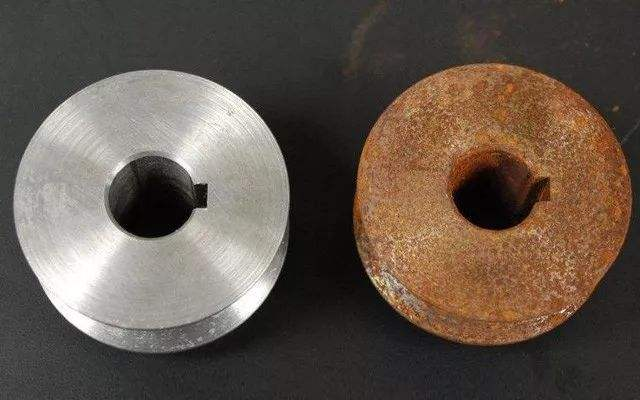

Application samples
|
|
