| Brand Name : | CS |
| Model Number : | CS-1500W |
| Certification : | CE |
| Price : | Can be negotiation |
| Payment Terms : | L/C, D/A, D/P, T/T |
Product introduction
The QCW fiber laser series developed by us ranges from 75W to 1500W, with higher electro-optical conversion efficiency, better optical quality and lower maintenance cost. This series product is a perfect alternative of existing light-pumped YAG laser and is an ideal choice for spot welding, seam welding, boring and other industrial applications,which requires wide pulse and high peak out power due to its diversified compatibility and the convenience for most YAG systems to use with simple transformation. we has a number of R&D teams with outstanding innovation ability and it can meet diversified demands of the customers for this series product to the greatest extent and provide specialized customized services.
Product features
♦Low average power
♦High peak value
♦High single pulse energy
product application
♦Alternative of Light-Pumped YAG Lasers
♦Spot/Seam Welding
♦Ceramics Cutting
♦Precision Welding /Cutting
♦Electronic Parts Processing
♦Power Battery Welding
♦Soldering
♦PCB Welding
Product specification
♦Optical characteristics
| N | Characteristics | Value (Range) | Unit | |
| 1 | Central Wavelength | 1070-1090 | nm | |
| 2 | Spectral width @ 3dB | < 5 | nm | |
| 3 | Max. Avg Power | CW Mode | 300 | W |
| Pulsed Mode | 150 | W | ||
| 4 | Max. Peak Power | 1500 | W | |
| 5 | Max. Pulse Energy | 15 | J | |
| 6 | Operation Mode | Pulsed / CW | / | |
| 7 | Power Turning Range | 10 - 100 | % | |
| 8 | Pulse Duration | 0.02-50 | ms | |
| 9 | Operation Frequency | ≤5 | kHz | |
| 10 | Duty Cycle | ≤50 | % | |
| 11 | Laser switching ON/OFF time | < 10 | μs | |
| 12 | Output Power Instability | < 3 | % | |
| 13 | Beam Quality (M2) | < 1.2 | / | |
| 14 | Polarization | Random | / | |
| 15 | Red Guide Laser Power | 1-2 | mW | |
| 16 | Output Fiber Termination | QCS or QBH(Default) | / | |
| 17 | QBH Beam Divergence | <120 | mrad | |
| 18 | QCS collimated beam diameter(4σ) | 6±0.5 | mm | |
| 19 | Delivery Fiber Length | 5 | m | |
| 20 | Output Fiber Core Diameter | 14 | μm | |
Peak Power / %Electrical characteristics
| N | Characteristics | Value (Range) | Unit |
| 21 | Analog Power Control | 1-10 | V |
| 22 | Input AC Voltage | 220 | VAC |
| 23 | Laser Operating Current | < 10 | A |
| 24 | Maximum Power Consumption | <1680 | W |
| N | Characteristics | Value (Range) | Unit |
| 25 | Operating Ambient Temperature Range | 0 - 40 | ℃ |
| 26 | Storage Temperature | -10 ~ 60 | ℃ |
| 27 | Cooling Method | Forced Air | / |
Structural characteristics
| N | Characteristics | Value (Range) | Unit |
| 28 | Laser Color | Red | / |

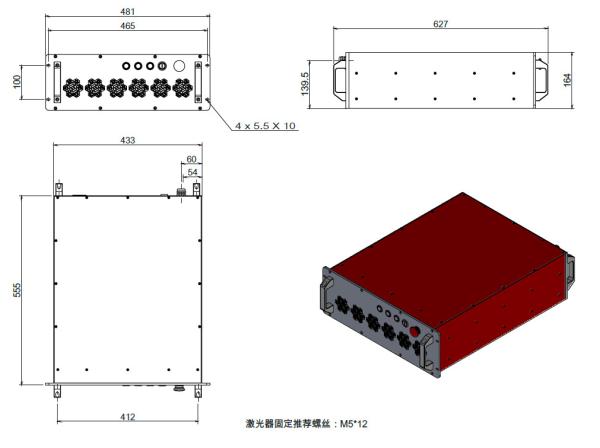

| 29 | Laser Dimensions | 555*433*164(not i nclude handle) | mm |
| 30 | QBH Dimension | Standard | / |
| 31 | QCS Dimension | Φ24*190(Optional) | mm |
| 32 | Net Weight | <40 | kg |
|
|
