Product introduction
High power 500W MOPA laser is a pulsed laser with high beam quality and high-power laser output that uses a low-power laser with high beam quality as the seed light source, and achieves high beam quality and high-power laser output through a single-stage or multi-stage fiber amplification system. Compared with Q-switched fiber lasers, the pulse frequency and pulse width of high power MOPA fiber lasers are independently controllable, with a wide selection range of pulse widths, and can maintain a better pulse waveform. Welding, precision cutting and other applications.
Product features
♦High power
♦Single mode
♦Large single
♦Pulse energy
Main applications
♦Deep engraving
♦Laser cleaning
♦Pole piece cutting
Product specification
♦Optical characteristics
| N | Characteristics | Parameter value | Unit |
| 1 | Center wavelength | 1060-1080 | nm |
| 2 | Spectral width(FWHM) | < 30 | nm |
| 3 | Maximum pulse energy | 2.0 | mJ |
| 4 | Output Power | 500 | W |
| 5 | Power adjustment range | 0-100 | % |
| 6 | Frequency adjustment range | 1-4000 | kHz |
| 7 | On/off light response time | < 20 | μs |
| 8 | Pulse Width | 20-500 | ns |
| 9 | Output power stability | < 5 | % |
| 10 | Beam quality M2 | <2.0 | / |
| 11 | Polarization direction | Random | / |
| 12 | Resist high reaction | yes | / |
| 13 | Indicator light | 1-3 | mW |
| 14 | Collimated Beam diameter (4σ) | 10±1 | mm |
| 15 | Delivery cable length | 5 | m |
♦ Electrical characteristics
| N | Characteristics | Parameter value | Unit |
| 16 | Power Supply voltage | 220 | VAC |
| 17 | Working current | < 9.2 | A |
| 18 | Power consumption | <2100 | W |
| 19 | 220V current demand | ≥12 | A |
♦Environmental requirements
| N | Characteristics | Parameter value | Unit | |
| 20 | Operating temperature | 0 - 40 | ℃ | |
| 21 | Storage temperature | -10 - 60 | ℃ | |
| 22 | Cooling method (chassis) | Water cooling | / | |
| 23 | Cooling method (isolator) | Water cooling | / | |
| 24 | Chiller set temperature | 28 | ℃ | |
| 25 | Minimum cooling water flow (chassis) | ≥8 | L/min | |
| 26 | Minimum cooling water flow (isolator) | ≥2 | L/min | |
| 27 | Diameter of water pipe | 10 | mm | |
| 28 | Diameter of isolator water pipe | 6 | mm | |
| 29 | Chiller cooling capacity | ≥1.5 | kW | |
♦Structural characteristics
| N | Characteristics | Parameter value | Unit |
| 30 | Laser dimension | 583*536*124 | mm3 |
| 31 | Isolator size | 277*70*60 | mm3 |
| 32 | Net weight | <30 | kg |
♦The pulse width corresponds to the power reduction frequency point and the maximum single pulse energy
| N | Pulse width (ns) | Power reduction frequency (kHz) | Upper frequency limit (kHz) | Max single pulse energy (mJ) |
| 1 | 1(CW) | / | / | / |
| 2 | 20 | 3300 | 4000 | 0.15 |
| 3 | 30 | 2000 | 4000 | 0.25 |
| 4 | 40 | 1600 | 3000 | 0.31 |
| 5 | 50 | 1300 | 3000 | 0.38 |
| 6 | 60 | 1000 | 3000 | 0.50 |
| 7 | 80 | 825 | 2000 | 0.61 |
| 8 | 90 | 725 | 2000 | 0.69 |
| 9 | 100 | 600 | 2000 | 0.83 |
| 10 | 120 | 500 | 2000 | 1.00 |
| 11 | 150 | 450 | 1000 | 1.11 |
| 12 | 200 | 400 | 1000 | 1.25 |
| 13 | 250 | 350 | 600 | 1.43 |
| 14 | 350 | 300 | 500 | 1.67 |
| 15 | 450 | 250 | 400 | 2.00 |
| 16 | 500 | 250 | 400 | 2.00 |
The definition of threshold frequency in the pulsed fiber laser

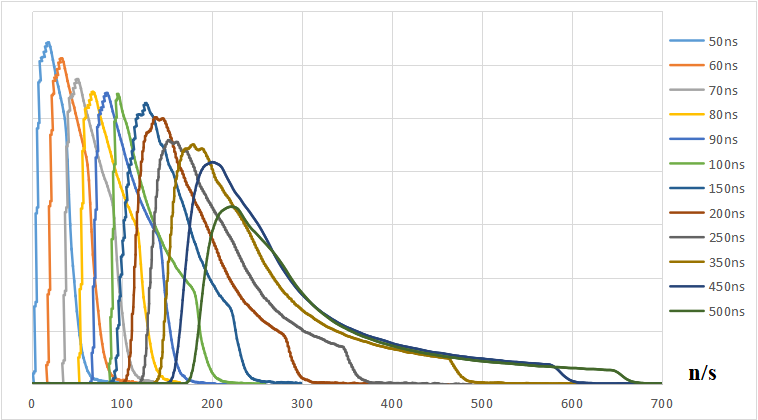

♦Pulse width wave
|
|
