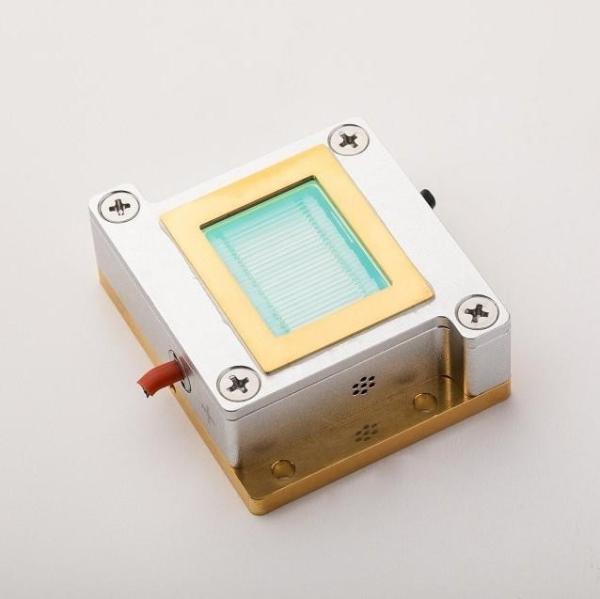

    Vertical Stack Diode Laser 808nm 1500W

    Ask Lasest Price
    Brand Name : CS
    Model Number : 108W 808nm
    Certification : CE
    Price : Can be negotiation
    Payment Terms : L/C, D/A, D/P, T/T
    • Product Details
    • Company Profile

    Vertical Stack Diode Laser 808nm 1500W


    Product specification

    Product Code
    Part No.14X1-1500-808-(Q)
    Test Temperature25°C
    General DataUnitValue
    Operation Mode-QCW
    Pulse Widthms1
    Duty Cycle%0.1
    Bar Pitchmm0.73
    Optical Data
    Central Wavelengthnm808
    Wavelength Tolerancenm± 3
    Output Power per BarW108
    Number of Bars-14
    Spectral Width FWHMnm≤ 5
    Spectral Width 90% Energynm≤ 8
    Fast Axis Divergence (FWHM)°35 (typical)
    Fast Axis Divergence with FAC (optional)°≤ 5°
    Slow Axis Divergence (FWHM)°8 (typical)
    Polarization Mode-TE
    Wavelength Temp. Coefficientnm / °C~ 0.28
    Electrical Data
    Operation CurrentA≤ 120
    Threshold CurrentA≤ 30
    Operating Voltage per BarV≤ 2
    Slope Efficiency per BarW / A≥ 1
    Power Conversion Efficiency%≥ 50
    Thermal Data
    Operating Temperature°C-45 ~ 60
    Storage Temperature 3°C-55 ~ 85
